歡迎來到鄭州宇收重工有限公司!welcome to Yusou Soap macines !
詳情請致電客服熱線:19138035720(微信)
首頁 > 產品中心 > 產品詳情

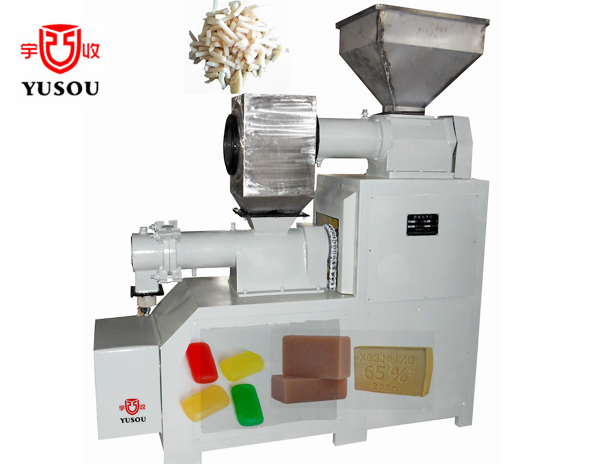

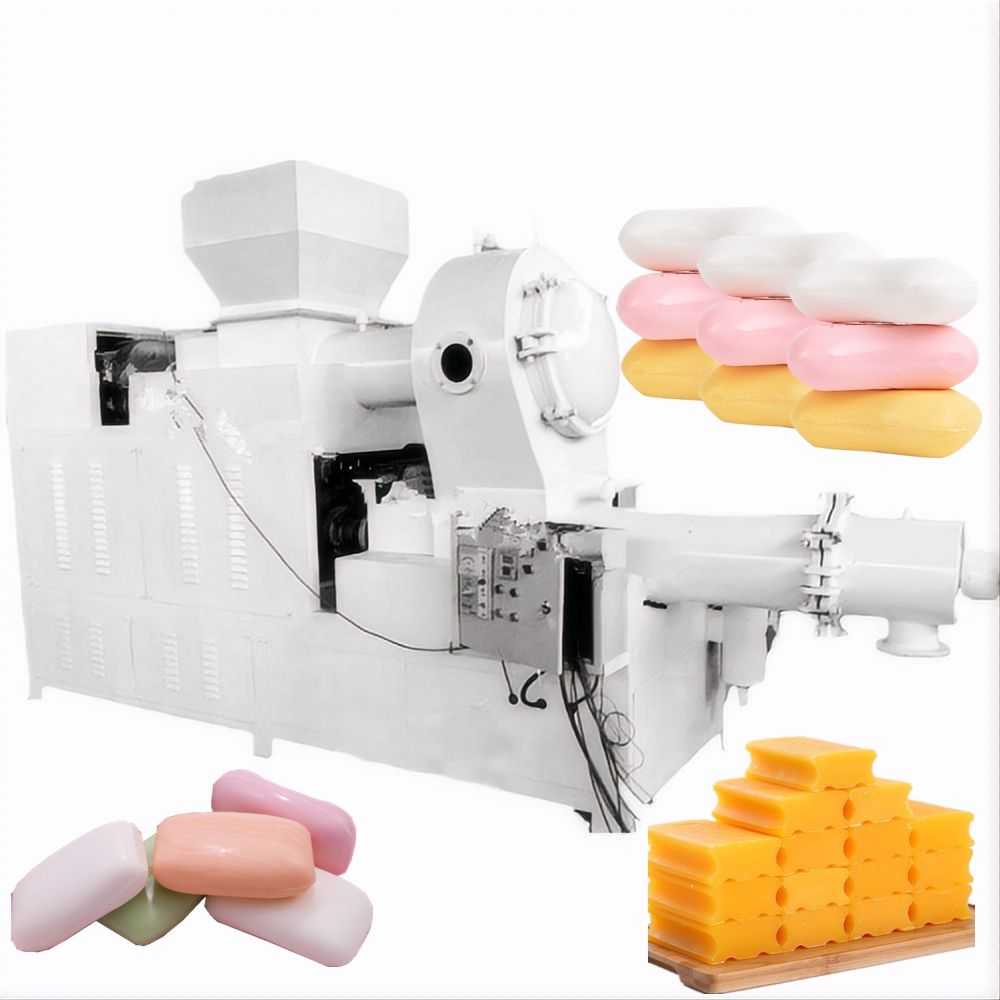

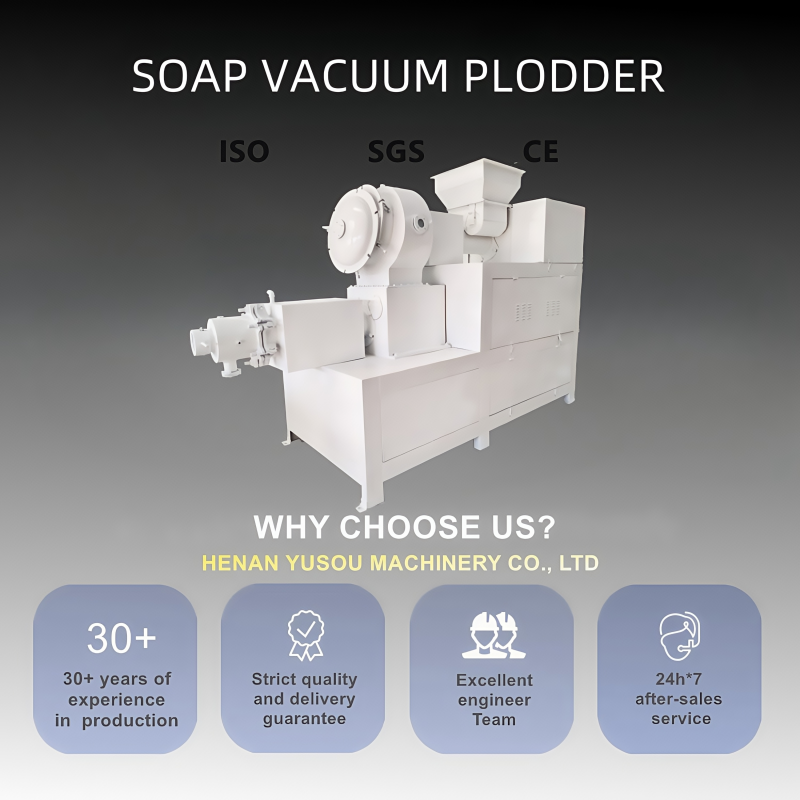

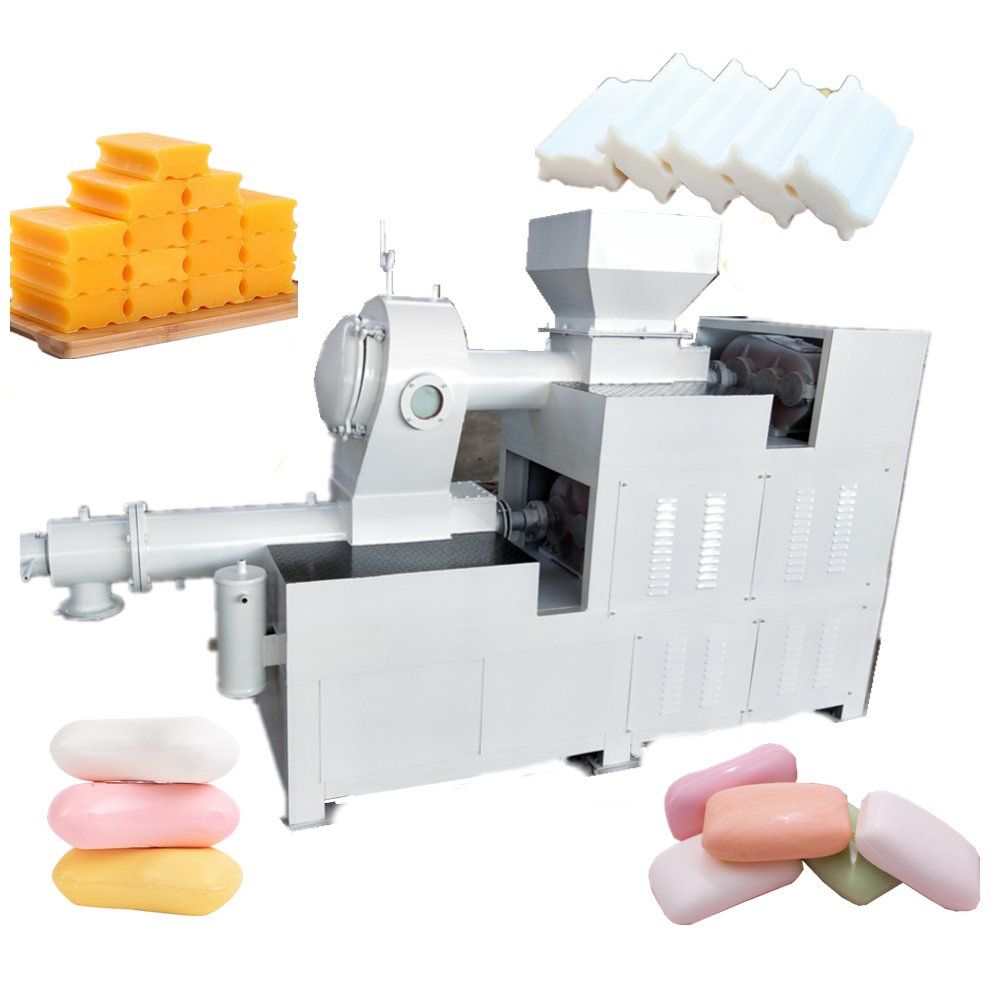

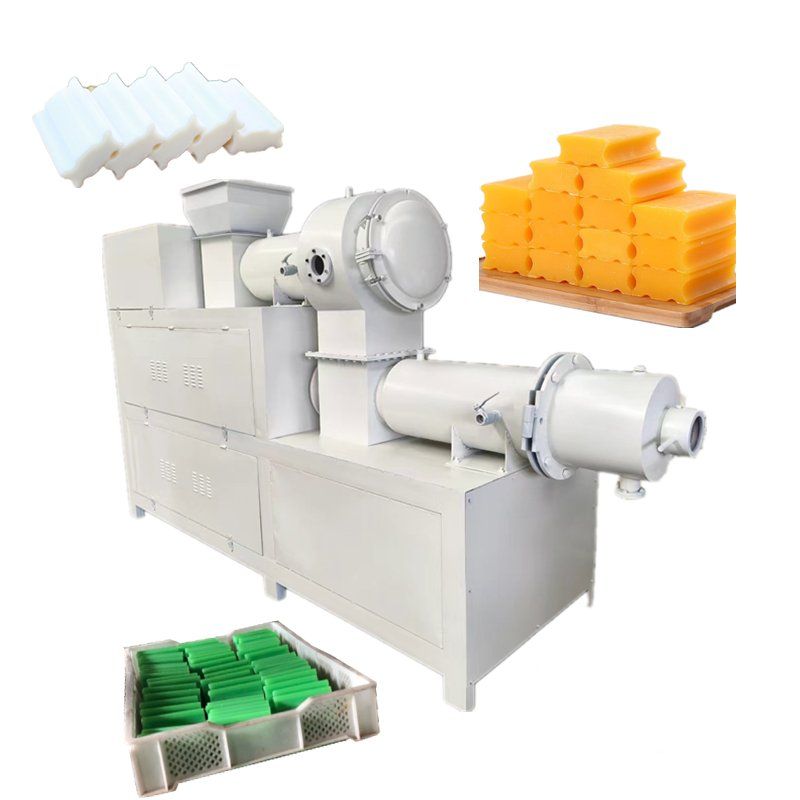

Soap vacuum Plodder
圖片

Soap Vacuum Plodder


雙聯單螺桿出條機由上下兩個單聯出條機組成,采用各自獨立的閉式減速傳動系統。加長的筒體及螺桿長徑比可達1:9,有效地對皂體進行擠壓,增強皂料的密實度。上聯螺桿出條等同于一個單聯精制機,在真空情況下制造皂粒。下聯為出條部分,皂粒被壓縮、擠壓后通過炮口以皂?xiàng)l形式連續輸出。


特點:

1.該機全套齒輪精密加工而成,螺桿采用***材料或***不銹鋼制作,耐用;

2.其它所有與香皂接觸部件均采用***鋼材制作;

3.控制部分可采用變頻調速,產量可調。

The double screw soap pludder machine is composed of two single screw shaft machines and adopts their own closed deceleration transmission system. The length-to-diameter ratio of the extended cylinder and screw can reach 1:9, which can effectively squeeze the soap and enhance the compactness of the soap. The upper screw strip is equivalent to a single refining machine to make soap noodles in vacuum. The lower part is the strip, and the soap grain is compressed and extruded through the muzzle in the form of soap pludder.

Characteristics

1. this machine complete gear precision processing, screw is made of high-quality material or high-quality stainless steel, durable;

2. all other soap contact parts are made of high quality steel;

3. control part can adopt frequency conversion speed regulation, output adjustable.

 Model

型 號model

SDCT-150

SDCT-180

SDCT-200

SDCT-250

SDCT-300

SDCT-350

產量Capacity(Kg/h)

250-300

350-400

450-500

800-1000

1500-2000

2500-3000

螺桿外徑Shaft dia(mm)

上聯

150

180

200

250

300

350

下聯

150

180

200

250

300

350

螺桿轉速shaft speed(RPM)

2-22

2-22

2-18

2-18

2-18

2-18

電機功率power(kW)

5.5+7.5

7.5+11

11+15

15+18.5

18.5+22

22+30
